Luminar 3070 BenchTop AOTF-NIR Spectrometer
IN-LINE / AT-LINE
When thinking of AOTF-NIR advantages, most typically think of in-line or at-line advantages. However, the Luminar 3070 Benchtop AOTF-NIR Spectrometer also has advantages because it is an AOTF-NIR instrument, namely:
Dry Measurements – reflectance with a rotating dish for powders and granules with almost zero preparation. Single tablets in reflectance are possible. Speed is 5 to 8 seconds per sample.
Liquid Measurements – flow cell with pouring the sample into a funnel, allowing good representation of large sample volume, enabling less homogeneous liquids. Speed is 5 to 8 seconds per sample.
Transmission Arm with Detector – for single tablets in transmission. Also, seeds in transmission.
Immunity to Ambient Light – no need to shield the sample, making it easier to operate.
PRODUCT INFORMATION INQUIRY
TECHNICAL SPECIFICATION
| Spectral Range Options | 850-1700 nm, 900-1800 nm, 1100-2300 nm |
| Measurement Modes | Transmission and Diffuse Reflectance |
| Spectral Resolution | 2-10 nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Repeatability | ± 0.01 nm |
| Wavelength Increment | Software Selectable 1-10 nm |
| Ambient Light Rejection | > 106 |
| S/N at 70% Range | < 30μabs in reflectance and transmission, for<5 seconds integration time |
| Wavelength Access Time | < 66 μsec |
| Photometric Range | 3.5 AU |
| Linearity | Better than 0.15% |
| Signal Digitalization | 16-bit A/D (1 part in 65,536) |
| Sampling Speed | 16,000 wavelength/sec |
| Sampling Area | 5 x 3 mm |
| Diagnostic | 10 Built-in monitoring sensors |
| Power Requirements | 12VDC, (24VDC special order), 90Watts, 110VAC 60Hz, 220VAC 50Hz |
| Cooling Options | Fan-cooled, Vortex-cooled |
| Communication | TCP/IP Ethernet |
| Enclosure (W x H x D) | 225 mm x 600 mm x 365 mm |
TYPICAL MEASUREMENT CAPABILITIES
The Luminar 3070 provides fast, non‑destructive NIR measurements that improve the ability to manufacturers to ensure real‑time quality control across food, agriculture, and other major industrial laboratory environments. Typical measurement applications include:

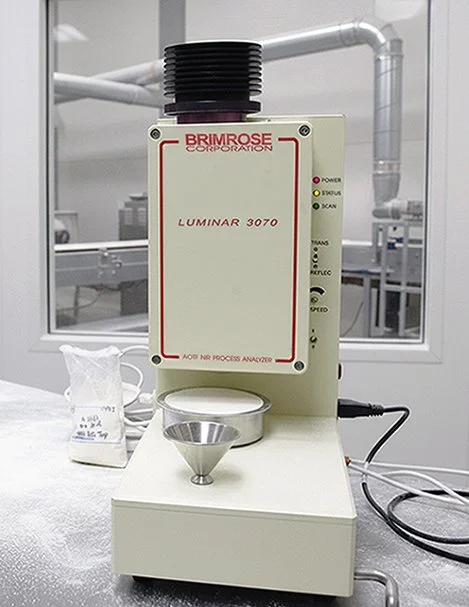

Rapid, Non-destructive Flour Measurement Using the Brimrose Benchtop AOTF-NIR Spectrometer
Laboratory Material Analysis & Quality Control: Measurement of chemical and physical properties for materials—powders, solids, liquids, gels, and tablets, etc.
Flour Composition Measurement: Rapid determination of moisture, protein, ash content
Sugar Monitoring: Measurement of % sugar in agricultural products such as sugar beets (per NIR application report)
Rapid, Non-destructive Flour Measurement Using the Brimrose Benchtop AOTF-NIR Spectrometer
