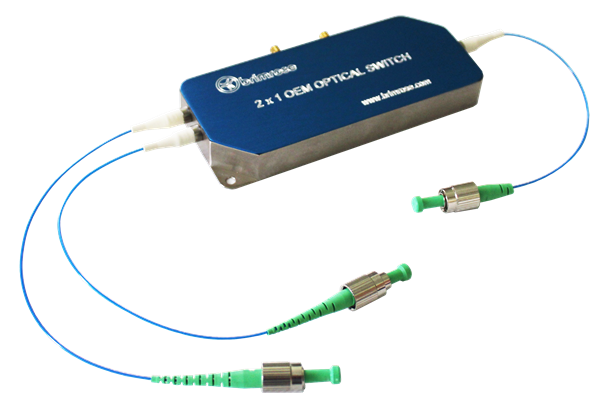

Fiber‑Optic Switch System
Brimrose’s Fiber‑Optic Switch System plays a key role in modern telecommunication and sensing networks, delivering high‑reliability operation, fast response, and continuous high‑frequency switching. It provides nanosecond signal routing in 1x2 and 2x1 bi‑directional configurations and integrates an all‑fiber switching module with a corresponding driver in a rack‑mountable enclosure.
The system operates through an external TTL-compatible low-voltage control signal, enabling simple and precise optical switching for reliable optical signal routing and efficient system operation.
Performance Capabilities
Our optical switch delivers fast, bi‑directional routing with high‑speed solid‑state switching and supports customizable configurations to meet diverse system requirements in advanced fiber‑network applications.
Core Functions
Fiber Optically Pigtailed
1x2 and 2x1 Configurations
Compact Size and Rack Mount
Solid-state: No Moving Parts
Nanosecond Speed Response: ~200 ns
Low Insertion Loss
Low Power Consumption
High Reliability, Environmentally Stable
9/125 µm Single-Mode (SM) Fiber
User Cases
Optical Add/Drop, Cross Connect, and Ring Protection
System Monitoring
Telecommunication Applications
Test & Measurement
Optical Network
Field Projects in Fiber Optics System
OEM Designs
Technical Specifications
| Model # | OS-2-1-C-55 | |
|---|---|---|
| Switch Type | 1x2 or 2x1 | |
| Wavelength Range (nm) * | C Band | |
| Control Input (V) - TTL Signal ** | 0-5 | |
| Switch Time (ns) | ~200 | |
| Number of Input Ports per Switch | 2x1 Optical Switch | 1x2 optical Switch |
| 2 Input Ports | 1 Input Port | |
| Number of Output Ports per Switch | 2x1 Optical Switch | 1x2 optical Switch |
| 1 Output Port | 2 Output Ports | |
| Case Type | Fiber Optically Pigtailed | |
| Fiber Type * | 9/125 μm Single-Mode | |
| Optical Connector Types * | FC/APC | |
| Total Insertion Loss (dB) | <2.5-3.0 | |
| Delay Time (μs) | ~1 | |
| Case Size (mm) | 150 x 45 x 14 | |
* Others are available.
** Switching is triggered by TTL compatible voltage signal.
One optical channel will be up-shifted by 55 MHz and the other will be downshifted by 55 MHz.
