AOTF-HSI

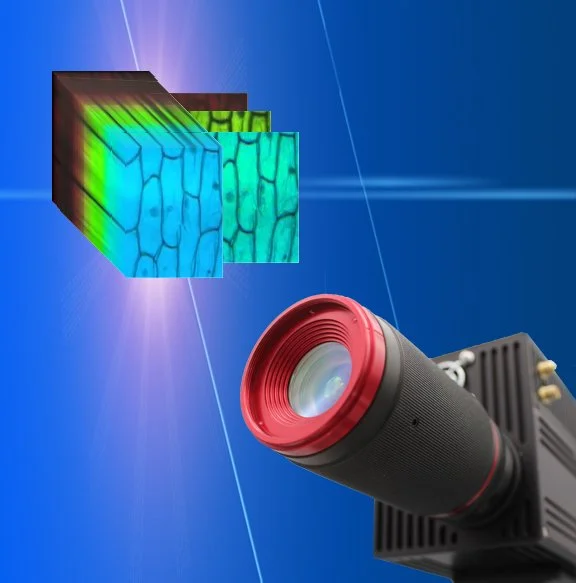

Again, an idea became reality when Brimrose secured an SBIR to create an AOTF based hyperspectral imager (HSI). Unlike push broom technologies, the AOTF Imager takes a complete snapshot at each wavelength and outputs an entire data cube.
AOTF Hyperspectral Imagers
Seeing Things Beyond What The Human Eye Can See
Brimrose AOTF Hyperspectral Imagers are custom built to meet our customer requirements and specifications, delivering fast, solid‑state spectral imaging with exceptional stability and precision.
Systems are available in SWIR or Visible configurations, with optional built-in integrated computing, and in telescope or microscope formats. Each imager is built to match the demands of your application, environment, and analytical workflow. Select from any number of configurations that best suit your analysis needs.
HSI with Integrated PC and WiFi
Communication
HSI without Integrated PC Compatible with any C-Mount Interface of a Microscope or Telescope
HSI without Integrated PC
What Makes Our AOTF - Hyperspectral Imagers Unique?
Dual Use: Hyperspectral or Multispectral Imaging
Transmission or Reflectance Imaging
Get Data Cube From Any Angle
Analyze The Target at Specific Wavelength in Real-Time
No Moving Parts in Optical Train
Immune to Vibration
Video Frame Rate: Up to 2000/fps (VIS only)
Spatial Resolution: Camera Dependent
Spectral Resolution: 3-20nm
Spectral Scanning/No Pixel Stitching Required
Spectral Data Cube Saved in 16-bit PNG/Text/Band Sequential
Core Application Areas
Custom Applications Are Our Specialty
| Application Area | Typical Use Case |
|---|---|
| Semiconductor Industry | Thin film measurements, Coating uniformity analysis |
| Military, Defense and Security | Hidden camouflaged target identification, TTL taggant monitoring, Explosive or hazardous material detection (bacteria tetection), Remote sensing and Surveillance, etc. |
| Medical & Biomedical Research | Cancer detection (i.e. skin cancer), Tissue classification |
| Agriculture Monitoring (drone-based) | Field use in ecophysiological and agricultural application |
| Environmental Monitoring | Oil spill detection, Water quality assessment, Soil composition mapping |
| Industrial Quality Control and Process Monitoring | Material defect detection, Material sorting, etc. |
AOTF Hyperspectral Polarimetric Imager (HySPI)
Brimrose lately has developed an unique hyperspectral polarimetric imager that combines both a hyperspectral imager and spectropolarimeter in one world-class instrument.
Read Press Release- Includes Retarders
- Offers Polarization Selection: Measure Up to Six Polarization States
- Dual Use: Hyperspectral Imager or Spectropolarimeter
Resource Center
Explore our Resource Center for AOTF Hyperspectral Imagers to access product demonstrations and supporting materials. The center includes solution and application notes, videos, product specification sheets, and white papers.
