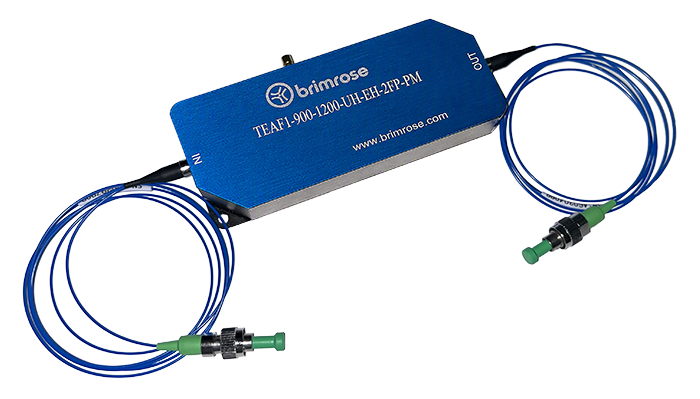

Dynamic Tunable Bandpass Filters
Brimrose’s Dynamic Tunable Bandpass Filter adjusts the center wavelength of a narrow band of light over a 100-200nm tuning range. It offers very high resolution (~1.5 nm) and can select single or multiple wavelengths simultaneously. It is able to precisely and rapidly adjust the wavelength and intensity of the diffracted/filtered light by varying the RF frequency and power.
Available in free-space and fiber-coupled configurations, the dynamic tunable filter provides high-resolution wavelength selection for a wide range of optical systems, including spectroscopy, sensing, imaging, telecommunications, and industrial monitoring applications across multiple wavelength ranges.
Performance Capabilities
Dynamic tunable bandpass filters deliver high-performance wavelength selection through precise ao control, enabling rapid tuning, high spectral resolution, and dynamic intensity adjustment. They support a wide range of optical and photonic applications with customizable solutions for flexible, accurate wavelength management.
Core Functions
Compact Size
No O-rings
Low Insertion Loss
Low Power Consumption
Narrow Bandwidths
Excellent Tuning Resolution
Hermetically Sealed
Broad Tuning Range
SM, SM/PM, MM Fiber Coupling Options
User Cases
Laboratory Test and Measurement Systems – tuning the center wavelength of broadband sources (white light sources or LEDs)
Dense WDM Transmission Systems
Other OEM Applications
Technical Specifications
| Model # | Wavelength Range (nm) |
Spectral Resolution (nm) |
RF Frequency (MHz) |
Insertion Loss (dB) |
|---|---|---|---|---|
| TEAF-0.40-0.60-2FP | 400-600 | 1-5 | 59-100 | 3-5 |
| TEAF-0.45-0.7-S-2FP | 450-700 | 3-9 | 100-180 | 3-5 |
| TEAF-0.9-1.2-UH-2FP | 900-1200 | 1 | 130-160 | 4-5 |
| TEAF-1.2-1.7-UH/EH-2FP | 1200-1700 | 1.0-2.5 | 80-120 | ~5 |
| TEAF-1.5-1.65-UH/EH-2FP | 1500-1650 | 1.5-2.5 | 80-100 | ~5 |
| TEAF-1.1-2.1-S-2FP | 1100-2100 | 4.0-15.0 | 50-100 | 5-7 |
We offer the fiber coupling options for our all-standard, fiber-coupled, AO tunable filters.
Fiber Type: Single-Mode (SM) fiber, Single-Mode Polarization Maintaining (SM/PM) fiber, and Multi-Mode (MM) fiber. Other fiber types are available on request.
Fiber Connectors: FC, SC, LC, and SMA. Other fiber connectors are available on request.
Options:
S – Standard Resolution
H – High Resolution
EH – Extra-high Resolution
UH – Ultra-high Resolution
Other wavelengths are available upon request.
Customers Also Consider
Product Information Request
Request detailed information on standard dynamic tunable bandpass filter models, or submit a custom inquiry for a customized project solution.
