Fiber-Coupled AO Modulators
Brimrose’s all‑fiber, electronically controlled Fiber-Coupled AO Modulators (AOMs) adjust light amplitude, pulse duration, and frequency. Typical uses include switching, pulse picking, and fast attenuation across wavelengths from near‑UV to near‑IR.
We also offer a specialized type of modulator—the programmable attenuator. Attenuators are essential in fiber‑optic systems because they control and adjust the strength of the light signal. They match optical power to receiver dynamic range, set input/output levels in EDFAs, balance power across DWDM channels, and evaluate system performance under different optical power conditions.
Performance Capabilities
Fiber-Coupled AOMs deliver low insertion loss, high extinction ratios (up to 70 dB), fast rise times, and operation at frequencies up to several hundred MHz to enable precise, high-performance optical signal and power control in advanced photonic systems, with customizable configurations to meet application-specific requirements.
Core Functions
Compact Size
Rugged Design
Low Insertion Loss
Fast Switching Speed
Hermetically Sealed
Low RF Drive Power
Stable Performance
User Cases
TTL/Digital Amplitude Modulation
Analog Amplitude Modulation
Fast Attenuator
Gain Tilt Control
EDFA Power Control
Loop-back Switch
Telecommunications
Fiber Sensing
Pulse Picking, Q-Switching
Spectroscopy
Fiber Lasers
OEM Designs
Technical Specifications
| Model # | Wavelength (nm) |
Center Frequency (MHz) |
Rise Time (ns) |
Modulation Bandwidth (MHz) |
Fiber Type |
|---|---|---|---|---|---|
| TEM-110-10-55-2FP | 380-1600 | 110 | 55 | 10 | SM or SMPM |
| TEM-200-25-20-2FP | 380-1600 | 200 | 20 | 25 | |
| TEM-250-50-10-2FP | 380-1600 | 250 | 10 | 50 | |
| TEM-500-100-5-2FP | 380-1600 | 500 | 5 | 100 | |
| IPM-200-25-20-2FP | 1000-2100 | 200 | 20 | 25 | |
| IPM-500-100-5-2FP | 1000-2100 | 500 | 5 | 100 | |
| AMM-55-8-70-2FP | 1000-2500 | 55 | 70 | 8 | |
| AMM-100-20-25-2FP | 1000-2500 | 100 | 25 | 20 |

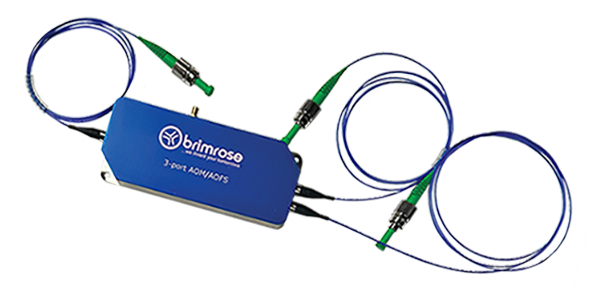

The 3-port, fiber-coupled version is available as well. The fiber-coupled AOM models shown above represent some examples of our fabrication capabilities. In addition, other wavelengths, frequencies or configurations are available.
Additional Specifications
| ON/OFF Extinction (dB) | > 50 |
| Insertion Loss (dB) | < 2.5 |
| Back Reflection (dB) | < -50 |
| Low Electric Power Consumption (dBm) | < 23 |
| Operating Wavelength Range (nm) | ± 25 |
