Luminar 3060 AOTF-NIR Process Spectrometer with Built-in Multiplexer
IN-LINE FOR REAL-TIME MEASUREMENT
The Brimrose Luminar 3060 Multiplexer AOTF-NIR Spectrometer is designed for at-line measurement in a production facility with up to 16 active channels. Each channel is connected to a probe or flow cell with fiber-optic cable. A single spectrometer is multiplexed by rapidly switching the light source from each channel into the detector. All 16 channels can be sequentially analyzed in less than 1 minute.
The 3060 can be a cost-effective option when needing multiple test points. Choosing between a 4030 and 3060 depends upon the number of test points required and the location of each test point due to the length of fiber-optics required to be run.
PRODUCT INFORMATION INQUIRY
TECHNICAL SPECIFICATION
| Spectral Range Options | 850-1700 nm, 900-1800 nm, 1100-2300 nm (standard) |
| Measurement Modes | Transmission, Reflectance and Transflectance |
| Spectral Resolution | 2-10 nm |
| Wavelength Accuracy | ± 0.5 nm |
| Wavelength Repeatability | ± 0.01 nm |
| Ambient Light Rejection | > 106 |
| S/N at 70% Range (closed loop) | < 10μabs in transmission, and < 40μabs in reflectance |
| Non-Linearity | 0.1 % |
| Signal Digitalization | 16-bit A/D (1 part in 65,536) |
| Sampling Speed | 16,000 wavelength/sec |
| Diagnostic | 10 Built-in monitoring sensors |
| Optical Fiber Cables | Low OH Silica Fiber for Near-IR/Fluoride Fiber for Extended Near-IR |
| Channel Number | Up to 16 |
| Switching Time | < 0.25sec for any channels |
| Power Requirements | 24 VDC, 110Watts, 110VAC 60Hz, 220VAC 50 Hz |
| Cooling Options | Fan-cooled, A/C-cooled, Vortex-cooled, TE-cooled |
| Communication | OPC UA, Modbus (Serial or TCP), I/O with 4-20mA, TCP/IP Ethernet |
| Enclosure (W x H x D) | 720 mm x 794 mm x 325 mm Stainless Steel NEMA 4X, 12X; Explosion-proof options available |
TYPICAL MEASUREMENT CAPABILITIES
The Luminar 3060 delivers rapid, non‑destructive NIR analysis that provides inline, real-time, multi-point process monitoring across a wide range of industrial processes. Typical measurement applications include:

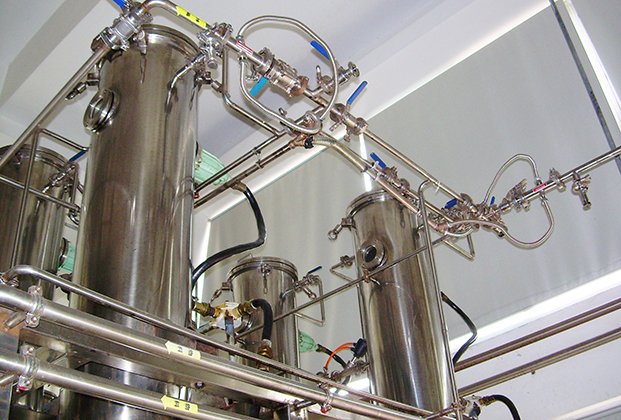

Solvent Monitoring with Brimrose NIR Flow-Cell Integration System
Reaction Monitoring: Monitoring multi‑component solvent streams during distillation
Solvent Recover Monitoring: Inline flow‑cell measurement of solvent composition, Moisture determination in alcohols, aromatics, etc.
Validation of Biodiesel Product: Measurement of energy values and % solids in black liquor (per NIR application report)
Tablet Inspection: Measuring moisture and coating thickness, Monitoring blend uniformity
Grain & Flour Mills: Measuring moisture, ammonia, gluten, protein, and other essential food components
Solvent Monitoring with Brimrose NIR Flow-Cell Integration System
ACCESSORIES / OPTIONS
Brimrose designs and custom builds: flow cells and probes, which can each be used by the Luminar 3060 Multiplexer AOTF-NIR Spectrometer.

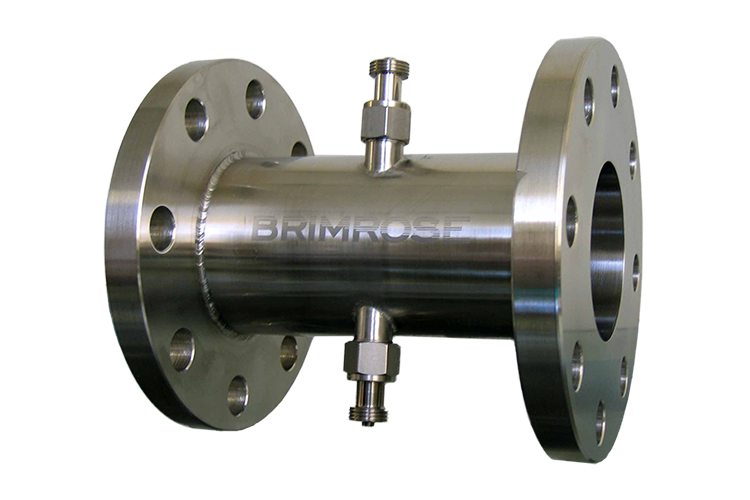

Flow Cells
Fixed Length Flow Cells
Variable Length Flow Cells
Gas Flow Cells
High Pressure and High Temperature Flow Cells

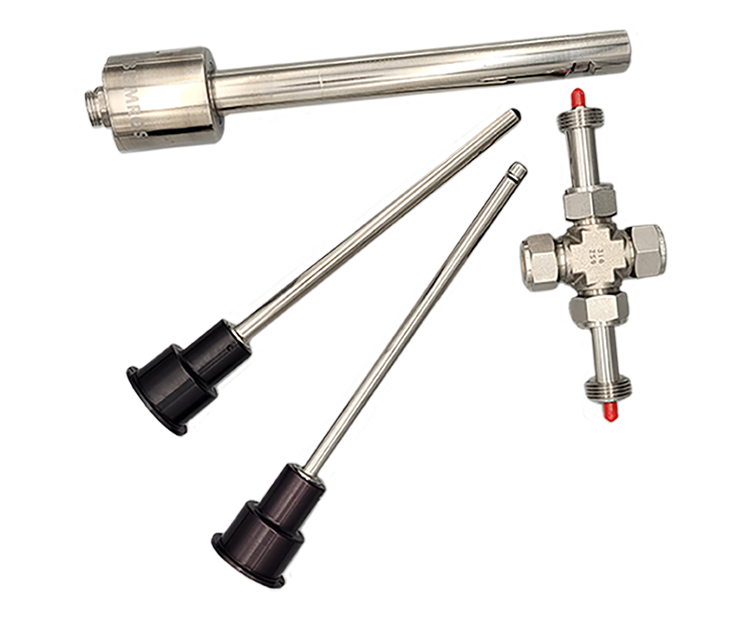

Probes for Liquids or Powders
Reflectance or Transflectance for Powder or Liquid Applications
Flexible Diffuse Reflectance Probe
Bubble-shedding Trans-reflectance Probe
Trans-reflectance Probe with Adjustable Path Length
Sapphire Ball Tipped Diffuse Reflectance Probe
Remote Diffuse Reflectance Head
Angled Diffuse Reflectance Probe
Dark-field Diffuse Reflectance Probe
Extrusion Probes
