Luminar 4010 Fiber-Optic AOTF-NIR Spectrometer

IN-LINE / AT-LINE

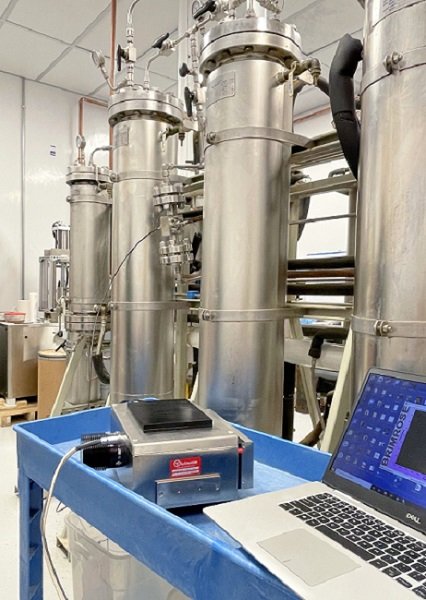

The Brimrose Luminar 4010 AOTF-NIR Spectrometer is designed and built for in-line or at-line measurement using a probe or flow cell together with fiber optics in a production facility. The 4010 has a stainless-steel housing. The fiber-optic configuration uses a fiber-optic cable to transmit the light from the spectrometer to a probe or flow cell that is mounted in position. The light returns through the fiber from the attachments for analysis. The length of the fiber-optic cable can be up to 300 m with almost no signal degradation.

REQUEST INFORMATION

Name

First Name

Last Name

Company

Telephone

Email Address

Application / Specifications

Include all product specification details.

Get Quote?

Yes

Not Now

TECHNICAL SPECIFICATION

DOWNLOAD


    Spectral Range Options
    850-1700 nm, 900-1800 nm, 1100-2300 nm (standard)

    Measurement Modes
    Transmission, Reflectance and Transflectance

    Spectral Resolution
    2-10 nm

    Wavelength Accuracy
    ± 0.5 nm

    Wavelength Repeatability
    ± 0.01 nm

    Wavelength Increment
    Software Selectable 1-10 nm

    Ambient Light Rejection
    > 106

    S/N at 70% Range
    < 30μabs in reflectance and transmission, for<5 seconds integration time

    Wavelength Access Time
    < 66 μsec

    Photometric Range
    3.5 AU

    Linearity
    Better than 0.15%

    Signal Digitalization
    16-bit A/D (1 part in 65,536)

    Sampling Speed
    16,000 wavelength/sec

    Sampling Distance
    40 mm (or 65 mm with Ø10 mm Sample Area)

    Diagnostic
    10 Built-in monitoring sensors

    Power Requirements
    12VDC, (24VDC special order), 90Watts, 110VAC 60Hz, 220VAC 50Hz

    Cooling Options
    Fan-cooled, Vortex-cooled

    Communication
    Wireless, OPC UA, Modbus (Serial or TCP), I/O with 4-20mA, TCP/IP Ethernet

    Enclosure (W x H x D)
    300 mm x 256 mm x 145 mm Stainless Steel
NEMA 4X; Explosion-proof options available

SOLUTION NOTES

ACCESSORIES

Brimrose designs and custom builds: flow cells and probes, which can each be used by the Luminar 4010 Fiber-Optic AOTF-NIR Spectrometer.

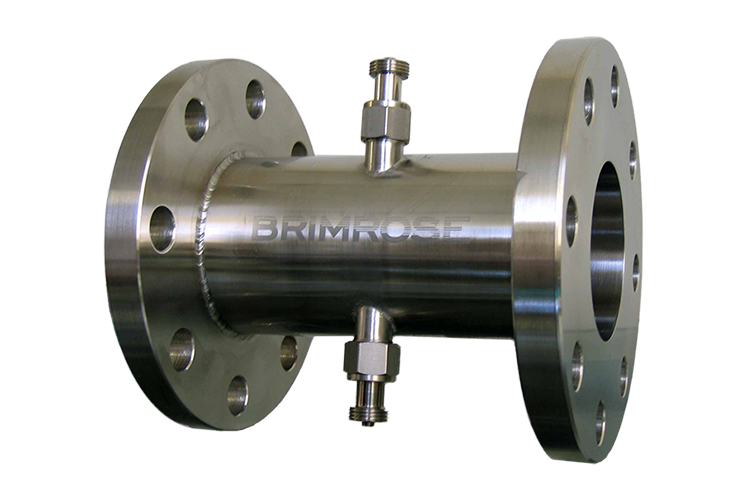

Flow Cells

Fixed Length Flow Cells
Variable Length Flow Cells
Gas Flow Cells
High Pressure and High Temperature Flow Cells

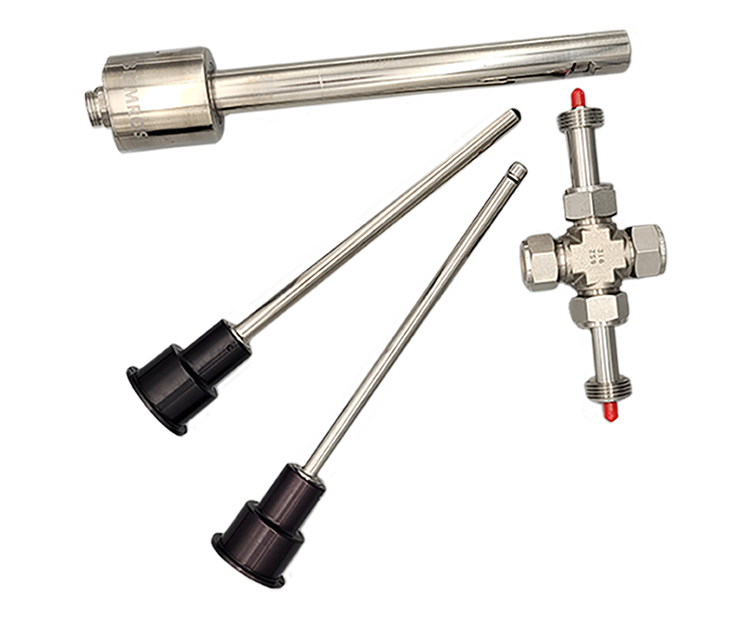

Probes for Liquids or Powders

Reflectance or Transflectance for Powder or Liquid Applications
Flexible Diffuse Reflectance Probe
Bubble-shedding Trans-reflectance Probe
Trans-reflectance Probe with Adjustable Path Length
Sapphire Ball Tipped Diffuse Reflectance Probe
Remote Diffuse Reflectance Head
Angled Diffuse Reflectance Probe
Dark-field Diffuse Reflectance Probe
Extrusion Probes

Spectral Range Options	850-1700 nm, 900-1800 nm, 1100-2300 nm (standard)
Measurement Modes	Transmission, Reflectance and Transflectance
Spectral Resolution	2-10 nm
Wavelength Accuracy	± 0.5 nm
Wavelength Repeatability	± 0.01 nm
Wavelength Increment	Software Selectable 1-10 nm
Ambient Light Rejection	> 10⁶
S/N at 70% Range	< 30μabs in reflectance and transmission, for<5 seconds integration time
Wavelength Access Time	< 66 μsec
Photometric Range	3.5 AU
Linearity	Better than 0.15%
Signal Digitalization	16-bit A/D (1 part in 65,536)
Sampling Speed	16,000 wavelength/sec
Sampling Distance	40 mm (or 65 mm with Ø10 mm Sample Area)
Diagnostic	10 Built-in monitoring sensors
Power Requirements	12VDC, (24VDC special order), 90Watts, 110VAC 60Hz, 220VAC 50Hz
Cooling Options	Fan-cooled, Vortex-cooled
Communication	Wireless, OPC UA, Modbus (Serial or TCP), I/O with 4-20mA, TCP/IP Ethernet
Enclosure (W x H x D)	300 mm x 256 mm x 145 mm Stainless Steel NEMA 4X; Explosion-proof options available
